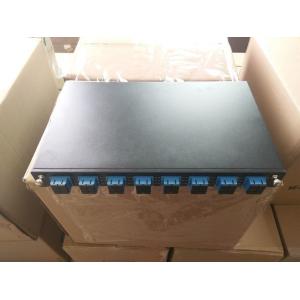

SC/FC/ST/LC 24 fibers Fiber Optic Cable Terminal Patch Panel

Features:

1. Standard size, light weight and reasonable structure
2. Slide out drawer for easy cable management,drawing type of patch panel
3. FC, SC, ST, LC adapter patch panel for option, easy to replace
4. Front access panel design for easy operation
5. Suitable for 19’’ or 23’’ standard optic distribution cabinets,distribution frame
6. Max. capacity 96 fibers, one splice trays of 12 fibers (OST-005B)
7. 4 fiber cable entry ports at rear side of patch panel
8. White or black color fiber optic cable patch panel
9. Material: Cold-roll steel patch panel

THE EXW PRICE IN THIS PAGE IS BASED ON VERSION ODF-RSDZ-17/24F 24 cores version dispatch panel

Specification:

Application:

Telecommunications,termination cable patch panel

Fiber to the home (FTTH)

LAN / WAN

CATV

It is made of 1U or 2U 19’’ cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has aluminum sliding fitting with self-locking functions prevent the drawer from falling when moved.

1, ODF-RSDZ-17/12F 12 cores dispatch panel

3, ODF-RSDZ-17/48F 48 cores dispatch panel

4, ODF-RSDZ-22/96F

Shenzhen YHT Broadband Equipment Co., Ltd. is a professional manufacturer established in 2003. It has 17 years experience in R&D, production and sales of fiber optic products.
Its factory Huizhou YHT Broadband Equipment Co., Ltd. is located in YHT industry park and certified by ISO 9001:2015 management system, ISO 14001:2015 environmental management system, OHSAS 18001:2007 occupational health and safety management system, GB/T 29490-2013 intellectual property management system, TLC etc.

YHT industry park has more than 8 buildings that include YHT hardware, diemaking, injection moulding, painting, assembling, fiber optic cable production, connector & cable assembling workshops.

YHT Hardware Workshop

There are CNC punching, laser cutting, bending, automatic welding ... machines work automatically with high efficiency and precision. YHT can support large production for customized metal ODF, fiber distribution box, optic patch panel, terminal box, cabinet, splitter box etc.

YHT Diemaking Workshop

The mold department has the CNC lathe, the drilling machine, the milling machine, the computer gong, the spark machine, the line cutter etc. for supporting OEM, ODM plastic fiber optic box production.

YHT Injection Moulding Workshop

Many different types injection molding machine support large-scale production of plastic FTTH box, fiber optic splice closure, face plate, splice tray and so on.

YHT Fiber Optic Cable Production Workshop

Support FTTH drop cable, simplex, duplex, 4, 8, 12, 24, 48 ... fiber optic cable production.

YHT Painting Workshop
YHT painting workshop has mechanical automatic and manual spraying equipment for electrostatic powder spraying of metal products.

YHT Assembling Workshop

YHT assembling workshop support loading adapter, pigtail, splitter, splice tray etc. into fiber optic patch panel, box, ODF, cabinet for meeting customer one stop demand.

YHT Connector & Cable Assembling Workshop

In connector & cable assembling workshop, the fiber optic patch cord and pigtails are produced.
The fiber optic patch cord and pigtails are tested 100% before packing.

YHT Sample Room

YHT provides one stop solution for fiber optic splicing, distribution, termination and protection products.
The main products include fiber optic patch panel, distribution box, ODF, FTTH box, fiber optic splice closure, optic splitter box, cabinet, connector, fiber patch cord, pigtail, adapter etc. which widely used in FTTx, GPON, CATV, telecommunications.

YHT Test Laboratory

YHT has its own test laboratory which ensure the goods quality reliability. It can do dust-proof test, waterproof test, UV test, temperature test, tensile test, salt spray test, impact test and so on.

Certificates

YHT has more than 24 products that got the patent for utility models and 3 software copyright and pass certificates ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007, RoHS, GB/T 29490-2013, TLC, PONY, etc.

YHT is one of biggest manufacturer of fiber optic products in China. You can meet us in many international exhibitions. Such as CommunicAsia, ECOC, OFC, ITU, CIOE, FIBER CONNECT etc.

YHT has strong R&D ability and well-experience technical person for supporting customized fiber optic products.
YHT is Your Honest Team. We are ready for supporting your fiber optic project and business.
