FTTH Outdoor Telecom Cabinet 144 288 576 Core Optical Distribution Cabinet

Fiber optic cross connection cabinet is an outdoor optical equipment that is especially designed for outdoor optical nodes in access net work.

Technical Parameters:

Nominal work wave-length: 850nm, 1310nm, 1550nm

Protection level: IP65

Work Temperature: -45℃-+85℃

Storage temperature: -100℃-+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure: 70~106 Kpa

Insertion loss: ≤0.2dB

Return loss:≥45dB (PC),55dB(UPC),60dB(APC)

Isolation resistance(between frame and protection grounding):＞1000 MΩ/500V(DC)

Material:

● Cold roll steel material

Features:

● High intensity and anti-erosion performance

● Able to counter abrupt climate change and extreme environment

● Capacity can be flexibly customized as required

● Installation is quick and convenient

● Built-in direct splice unit is capable for providing direct connection function.

● Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

● With secure and reliable fastening and grounding protection devices for the optic fiber

● Applicable to strap-shaped and non-strap shaped fibers

Drawings:

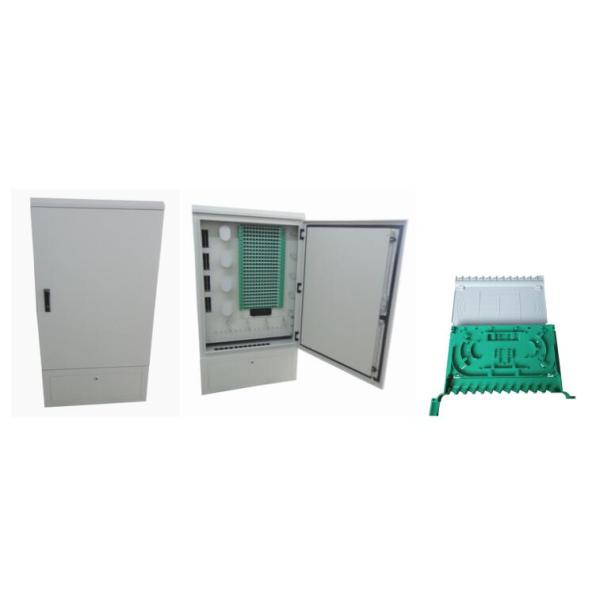

Picture:
